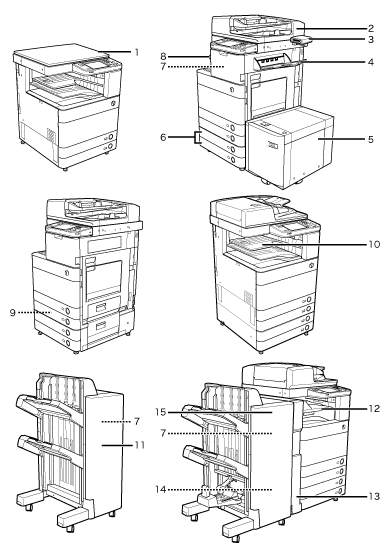

| 1 |
Printer Cover-C1
The Printer Cover-C1 covers the top of the machine when the scanner unit is not attached. |
2 |
Color Image Reader Unit-B1/Duplex Color Image Reader Unit-B1
The Color Image Reader Unit-B1/Duplex Color Image Reader Unit-B1 consists of a scanner unit and a document feeding unit. Originals placed in the feeder are automatically fed sheet by sheet to the platen glass for scanning. |
| 3 |
Card Reader-C1/Copy Card Reader-F1
The Card Reader-C1/Copy Card Reader-F1 enables Department ID
Management to be performed. |
4 |
Copy Tray-J1
The Copy Tray-J1 provides an additional paper
output tray, and is equipped with the following features: Collate, Group, and Rotate. |
| 5 |
Paper Deck Unit-B1
The Paper Deck Unit-B1 provides an additional source of paper for printing jobs.
The Paper Deck Unit-B1 holds up to 2,700 sheets of paper (80 g/m2). |
6 |
Cassette Feeding Unit-AD1
The Cassette Feeding Unit-AD1 provides two additional sources of paper for printing jobs. Each paper drawer holds up to 550 sheets of paper (80 g/m2). |
| 7 |
Staple-J1
The Staple-J1 can be attached to the finisher for stapling (Corner and Double). |
8 |
Inner Finisher-A1
The Inner Finisher-A1 is equipped with the following features: Collate, Group, Offset, and Staple (Corner and Double). |
| 9 |
Tab Feeding Attachment Kit-B1/Envelope Feeder Attachment-D1
The Tab Feeding Attachment Kit-B1 can only be attached to Paper Drawer 2, and holds only Tab papers. The Envelope Feeder Attachment-D1 can only be attached to Paper Drawer 2, and holds only envelopes. |
10 |
Inner 2 Way Tray-F1
The Inner 2 Way Tray-F1 is equipped with the following features: Collate, Group, and Rotate. |
| 11 |
Staple Finisher-C1
The Staple Finisher-C1 is equipped with the following features: Collate, Group, Offset, and Staple (Corner and Double). |
12 |
Buffer Pass Unit-G1
The Buffer Pass Unit-G1 is required to attach the Staple Finisher-C1 or Booklet Finisher-C1 to the main unit. |
| 13 |
External 2 Hole Puncher-B1/External 2/3 Hole Puncher-B1/External 2/4 Hole Puncher-B1
The Puncher is equipped with the Hole Punch mode. The Puncher can be attached only if the Staple Finisher-C1 or Booklet Finisher-C1 is attached. |
14 |
Staple Cartridge-D2/D3
The Staple Cartridge-D2/D3 can be attached to the Booklet Finisher-C1 for saddle stitching. |
| 15 |
Booklet Finisher-C1
The Booklet Finisher-C1 is equipped with the following features: Collate, Group, Offset, Staple (Corner, Double, and Saddle Stitch), and Saddle Fold. |
 |
|
