This setting enables you to set the page margin in millimeters. The settings can be set in increments of 0.5 mm from -50.0 mm through + +50.0 mm.

Use [] to increase the width of the inside margin.

Use [] to increase the width of the outside margin.

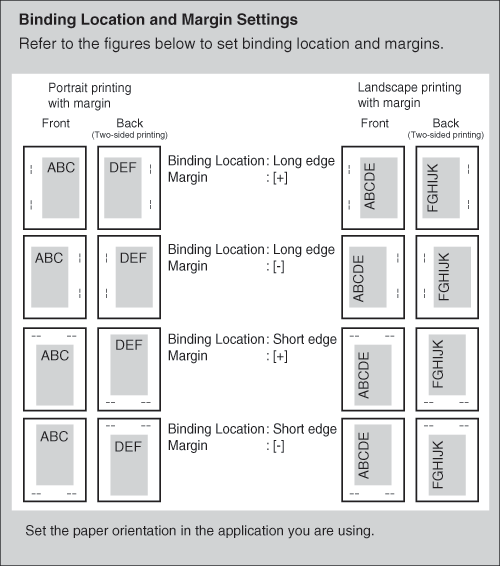

You can specify the edge along which the margin will be created in the 'Binding Location' setting (previous setting). To create a margin along one of the edges of the paper, use this setting in combination with the 'Binding Location' setting.

• If this setting moves the image outside the printable area, part of the image may be cut off.

• If this setting is used in combination with 'Offset Short Edge/Offset Long Edge', the values of the two settings are added together.

• Pressing [] increases the setting value by 0.5 mm each time the key is pressed. Pressing [] decreases the value by 0.5 mm each time. Holding down either [] or [] continuously speeds up the value alteration.
