Parts and Their Functions

Return to Overview

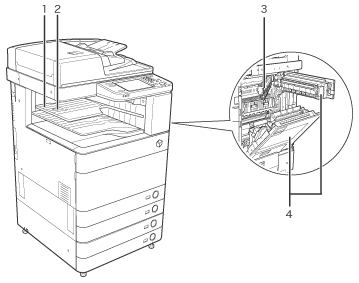

1 Inner 2 Way Tray
Prints are output to this tray.		 2 Output Paper Tray Guide
Tilt up the output paper tray guide to catch the printouts.
3 Paper Output Unit
Pull out the Paper Output Unit to remove jammed paper. (See "Problem Solving.")		 4 Main Unit's Upper Right Cover, Main Unit's Lower Right Cover
Open this cover when clearing a paper jam inside the main unit. (See "Problem Solving.")

The following are paper sizes that can be output from the output trays of the machine. However, some paper sizes may not be output depending on the set functions.

: Available -: Unavailable

Paper Size Output Tray
Tray A Tray B
305 × 457 mm
SRA3
A3
A4
A4R
A5
A5R
B4
B5
B5R
Envelope COM10 No.10
Monarch
DL
ISO-B5
ISO-C5
Nagagata 3
Yougatanaga 3
Kakugata 2
Custom Size 99 mm × 139.7 mm to 320 mm × 457.2 mm
